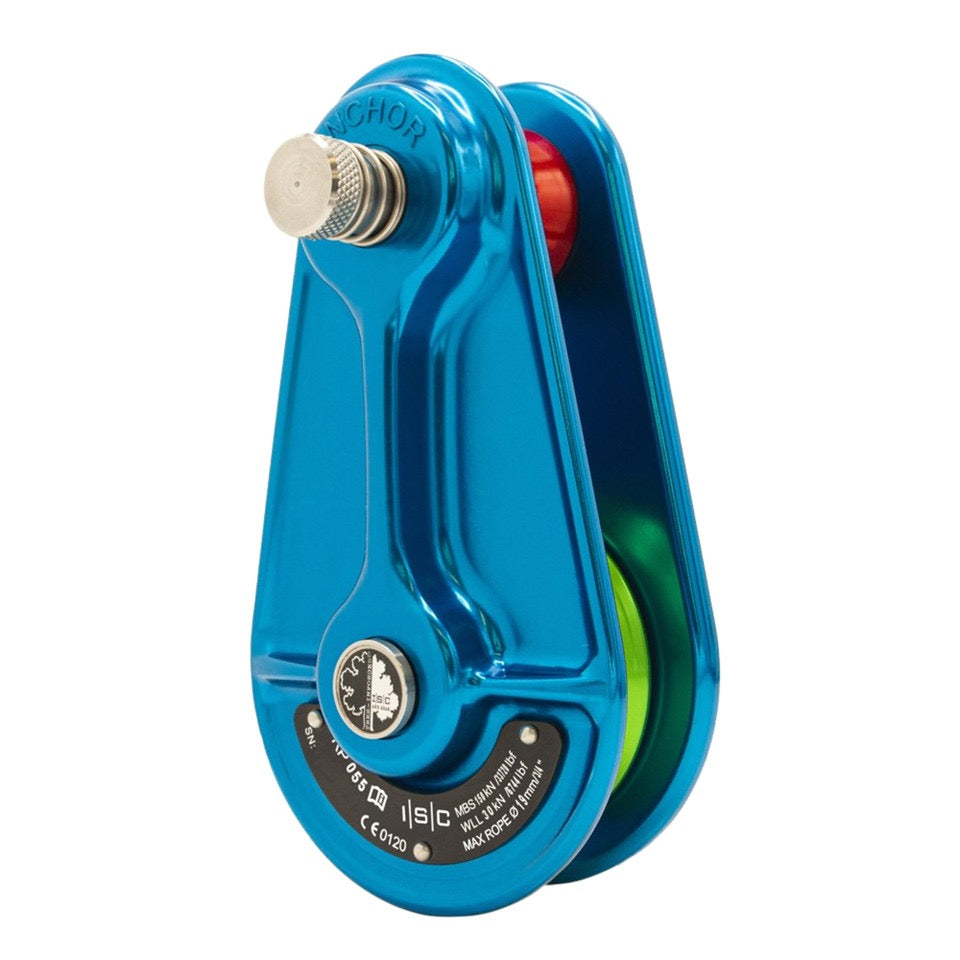

ISC Medium Forged Pulley- for 20mm (3/4") Rope

The small and medium versions are now manufactured using Hot Forged Technology, combined with high quality materials and components.  These blocks are rope friendly, durable and extremely robust.  These features combined give maximum security and strength, when the block is rigged as part of an impact system.

Apart from the aesthetically pleasing curves, the ISC impact pulley is designed to work (together with textiles) to absorb the huge forces which are created by the harsh dynamics of heavy Arborist work.  The side plates are produced using the best quality hot forged Aluminium and the special manufacturing process allows these pulleys to offer a highly impressive strength to weight ratio.

Specifications

• Rope diameter range: Max 20mm (3/4") Working Line Max 29mm (1+1/4") Topping Strop
  (WLL) Working Load Limit: 3000kg
  (WLL) Working Load Limit: 6600 lbs
  Serial numbering: As standard
  Pulley wheel color: Green
  Anchor wheel color: Red
  Wheel material: Aluminum
  Finish: Anodized
  Color: Blue
  Weight: 2166g


Approved Standards

• CE Approved
