ISC 5/8

ISC 5/8" Small Aluminum Rigging Block RED

Brand: ISC ARBORIST GEAR
Collection: Arborist Supplies
Product Type: Blocks & Pulleys
$229.99
SKU: RP051A1

Barcode: 5060508261377
Categories : Arborist Supplies
Quantity
Add to wishlist
Add to compare

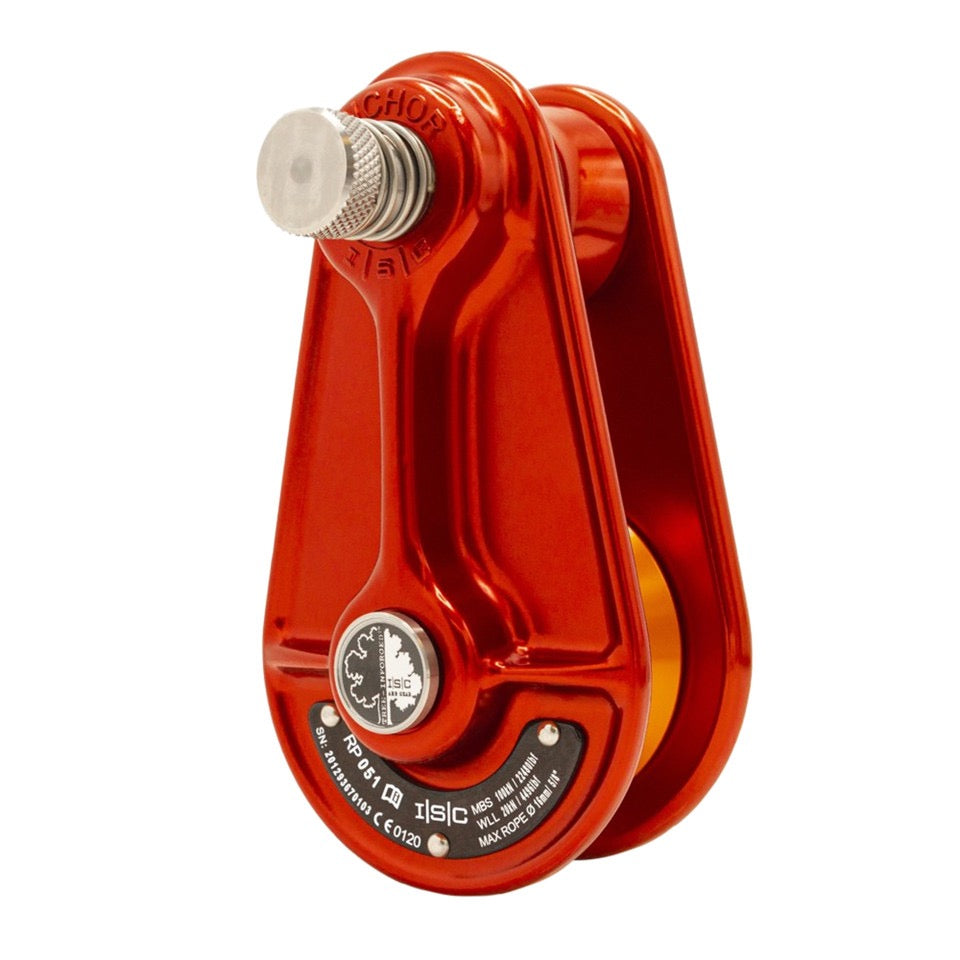

ISC 5/8" Small Aluminum Rigging Block RED

ISC's 5/8" Small Aluminum Arborist Rigging Block is designed to work with your rigging system and ropes to absorb the huge forces created by the harsh dynamics of heavy arborist work. The compact design and the unique upper sheave opens, closes, and secures easily. The broad side plates are hot-forged aluminum for strength and anodized for a long-lasting finish.

Details

Spring lock blocks are popular among riggers for their high strength-to-weight ratio and quick-twist rope access. Solid aluminum-alloy cheek plates, bushing, and sheave are supported by stainless-steel axles. Spring lock blocks have broad cheek plates to protect running lines and large sheaves to minimize bend in rigging lines.

Specifications

Length: 7.0" (175mm)
Width: 4.0" (100mm)
Thickness: 2.5" (65mm)
Weight: 3.25 lbs (1.5kg)
Sheave Diameter: 2.75" (70mm)
Maximum Rope Diameter: 5/8" (16mm)
Maximum Sling Diameter: 1" (25mm)
WLL:  20kN (4,400lbf)
MBS:  100kN (22,400lbf)

CE Approved
