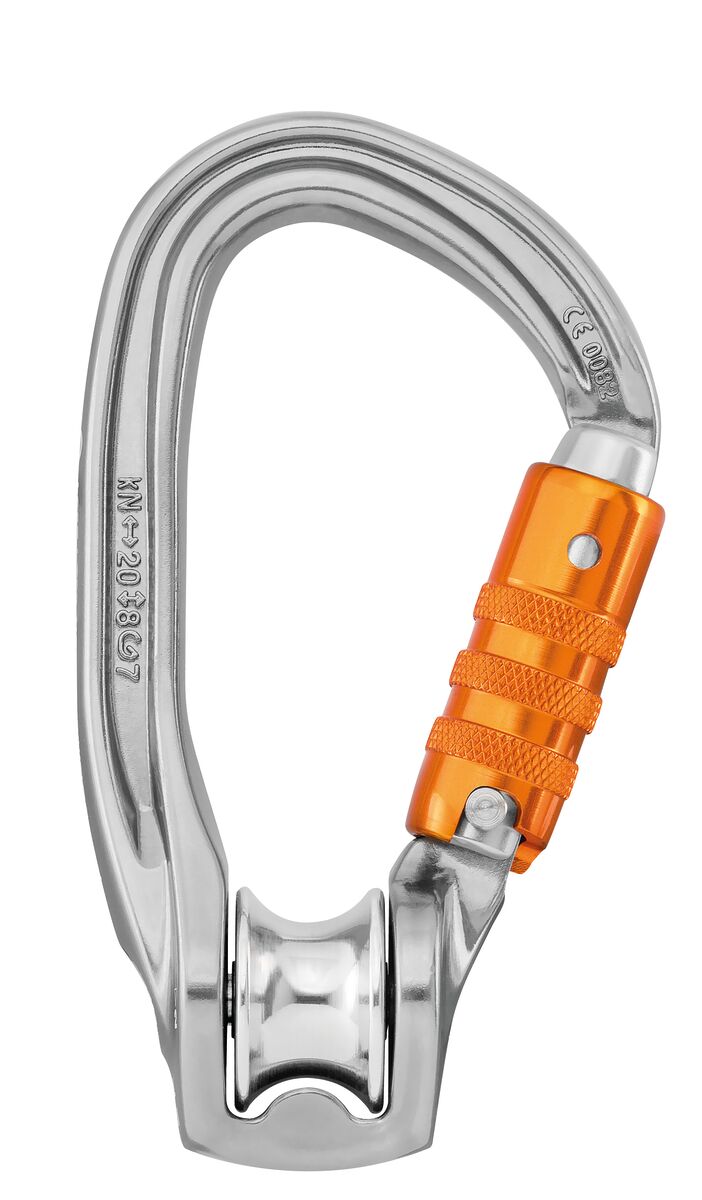

ROLLCLIP Z is a pulley-carabiner with a gate opening on the non-pulley side to facilitate installation on anchors and devices. It is available in two locking systems: automatic TRIACT-LOCK system or manual SCREW-LOCK system.

Details

• Easier handling:
  - sheave mounted on sealed ball bearings for excellent efficiency

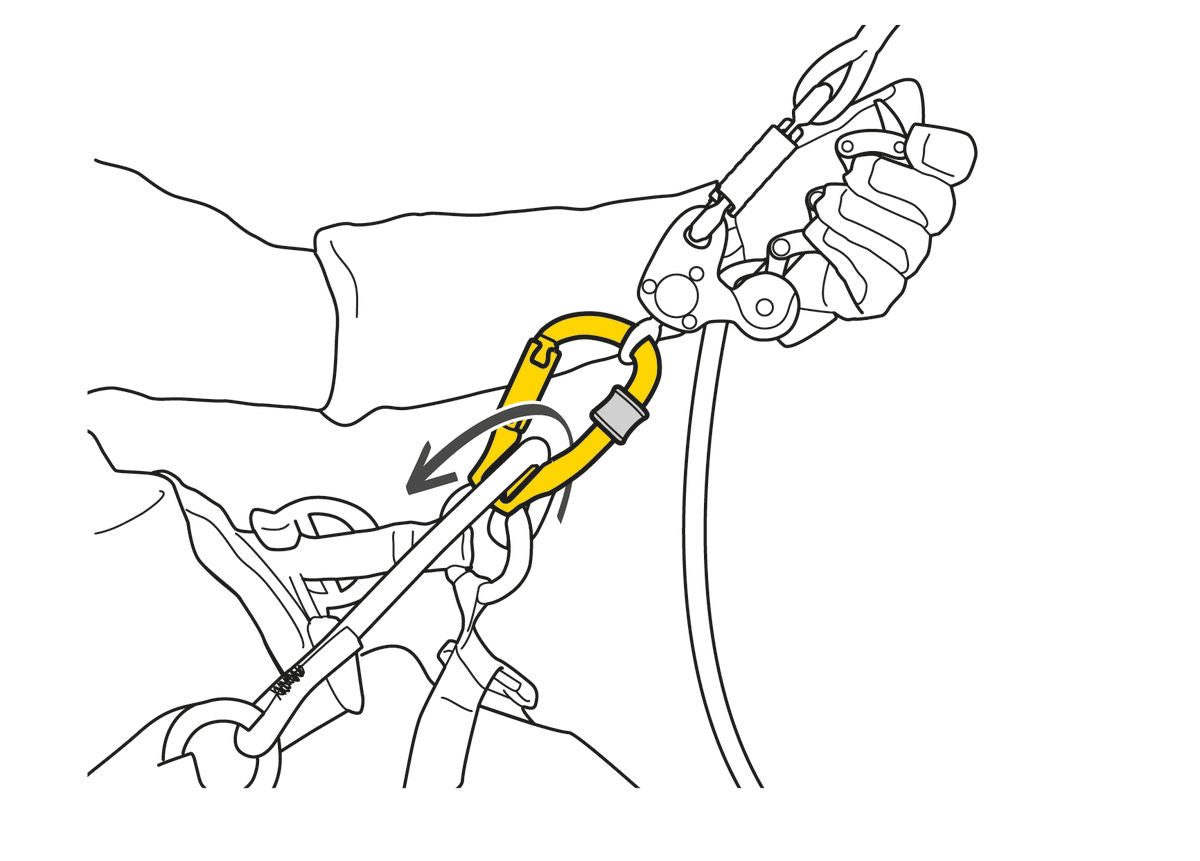

  - gate opening on the non-pulley side, to facilitate installation on devices

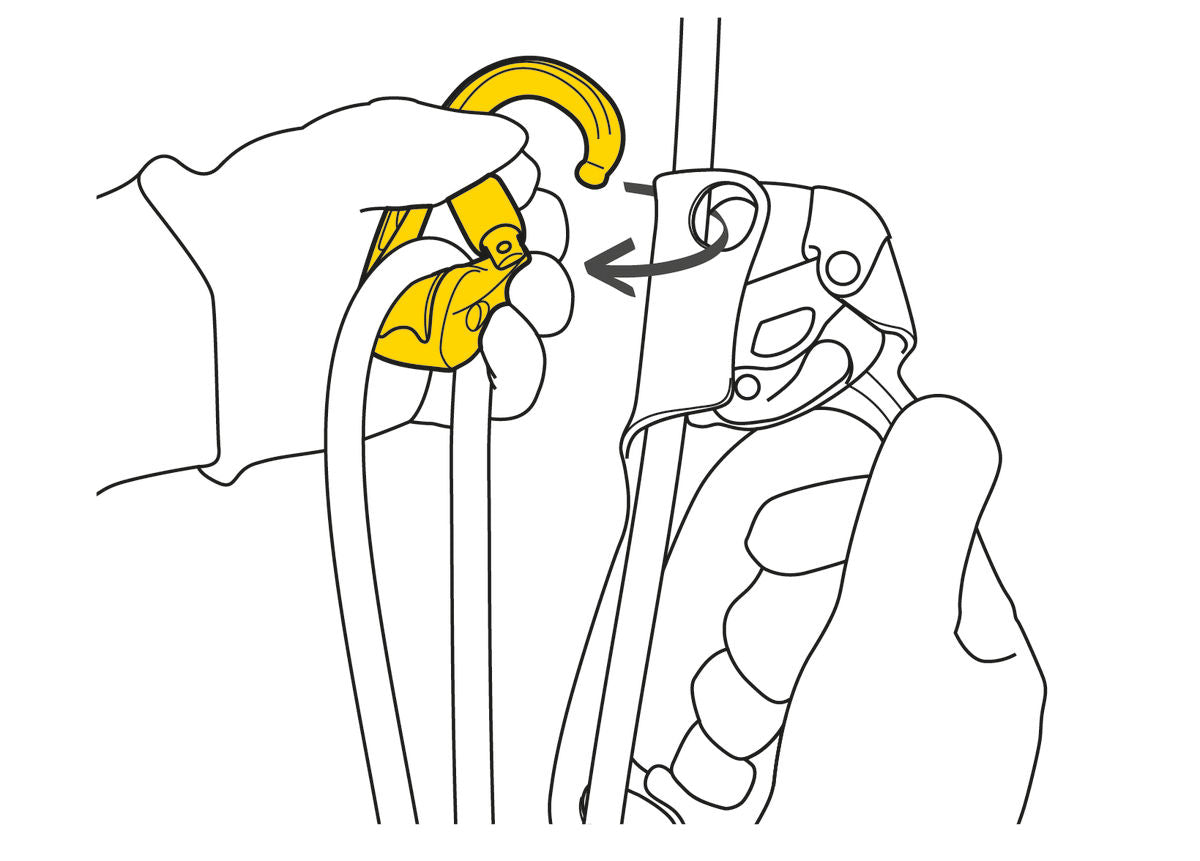

  - Keylock system prevents any accidental snagging of the carabiner when putting the pulley in place

• H cross-section of carabiner:
  - ensures an improved strength-to-weight ratio
  - protects markings from abrasion

• Two locking systems available:
  - TRIACT-LOCK: automatic locking with triple-action gate opening
  - SCREW-LOCK: the manual screw-lock with red band provides a visual warning when the carabiner is unlocked

Specifications

• Material(s): aluminum
• Min. rope diameter: 7 mm
• Max. rope diameter: 13 mm
• Sheave diameter: 18 mm
• Maximum working load: 2 x 2 = 4 kN
• Efficiency: 85 %
• Major axis strength: 20 kN
• Minor axis strength: 8 kN
• Open gate strength: 7 kN
